Everything You Need to Know About Solar Inverters

1. Introduction to Solar Inverters



Solar inverters play a critical role in solar power systems, acting as the bridge between solar panels and the electricity used in homes, businesses, and industries. They convert the power generated by solar panels into a form compatible with electrical devices, enabling solar energy to power appliances, lighting, and more. In this section, we’ll cover the fundamentals of solar inverters.

1.1 What is a Solar Inverter?



A solar inverter is an essential component in a solar power system. Its main function is to convert direct current (DC) electricity generated by solar panels into alternating current (AC) electricity, which is the standard form of power used in most homes and commercial settings.

1.2 Why are solar inverters important?



Solar inverters are often called the “brains” of solar power systems due to their pivotal role in energy conversion and system management. Their importance extends beyond simple DC-to-AC conversion—they also ensure that the entire system functions efficiently and safely.

Energy Conversion: Solar panels generate DC electricity, but homes and businesses use AC electricity. The inverter performs this essential conversion, enabling the solar system to feed electricity directly into the electrical grid or to power appliances on-site.

Everything You Need to Know About Solar Inverters inverter installation

Maximizing Efficiency: Modern solar inverters are equipped with Maximum Power Point Tracking (MPPT) technology, which helps optimize the power output from solar panels. MPPT technology dynamically adjusts the system to maximize electricity generation, even as sunlight conditions change throughout the day.

System Monitoring: Many solar inverters come with monitoring systems that track power production and performance. These features allow users to see how much power their system is generating, identify any issues, and gain insights into their energy usage.

Safety Mechanisms: Inverters also have built-in safety functions, such as disconnecting from the grid during power outages. This prevents energy from back-feeding into the grid, which could endanger utility workers. Additionally, many inverters include surge protection and temperature regulation features, ensuring that the system operates within safe parameters.

1.3 Understanding classification of solar inverters



People may choose one classification over the other depending on the specific aspects they’re focusing on. Generally speaking, inverters can be understood in terms of both their design/installation method and their application relative to the grid, and hey focus on different aspects.

Some people categorize inverters by types like string inverters, micro inverters, and hybrid inverters, while others use categories like on-grid, off-grid, and hybrid solar inverters.

Design-Oriented (String, Micro, Hybrid): Emphasizes technical differences in setup, efficiency, and suitability for different panel layouts.

Grid Connection-Oriented (On-Grid, Off-Grid, Hybrid): Focuses on power management, storage, and energy independence options.

We will provide a detailed description of the inverter according to the classification in the following post, to help readers better understand and make a choice.

Everything You Need to Know About Solar Inverters electricity

2. How do solar inverters work?



Solar inverters are indispensable in converting solar energy into usable electricity for homes, businesses, and industries. By transforming the direct current (DC) output from solar panels into alternating current (AC), solar inverters ensure compatibility with grid power and appliances. This section breaks down the core functionalities, key components, and the fundamental difference between DC and AC electricity, shedding light on how solar inverters make solar power systems viable.

Everything You Need to Know About Solar Inverter how it work

2.1 Basic Functionality of Solar Inverters



The basic functionality of a solar inverter centers around the DC-to-AC conversion process. Solar panels generate DC electricity when exposed to sunlight. While DC power can be used to charge batteries, it isn’t suitable for standard appliances or for feeding back into the utility grid.

Input of DC Power from Solar Panels: The inverter receives raw DC power directly from the solar panels. This power flows in a single direction, which is unsuitable for most household and commercial applications.

Conversion from DC to AC: The inverter uses electronic components, including transistors and switches, to manipulate and alternate the DC flow rapidly, creating an AC-like waveform. The inverter then further smooths this waveform, generating a consistent sinusoidal AC output that matches the frequency (typically 50Hz or 60Hz) required for the grid.

Voltage and Frequency Adjustment: During the conversion, the inverter adjusts the voltage and frequency of the output power, aligning it with the grid or on-site power requirements. This allows the inverter to seamlessly integrate with the local power system.

Performance Optimization: Most modern inverters are equipped with Maximum Power Point Tracking (MPPT), a technology that optimizes power extraction from the solar panels under changing conditions (like shading or fluctuating sunlight). MPPT constantly adjusts the system’s voltage and current to maximize energy output, improving efficiency.

Through these processes, the inverter enables the solar power system to provide reliable, consistent AC electricity for various applications, ensuring efficient energy usage.

Everything You Need to Know About Solar Inverters Key components of solar inverters

2.2 Key Components of a Solar Inverter



Solar inverters contain several critical components that enable the DC-to-AC conversion and ensure reliable, safe operation. The main components of a solar inverter include:

2.2.1 Transformer



A transformer is commonly found in many traditional inverters. Its role is to step up or step down the voltage to match the required output. In transformers, electromagnetic induction is used to transfer electrical energy between circuits, creating an AC output that is at the correct voltage for home or grid use.

Some modern inverters use a transformerless design, which allows for a lighter, more compact build, and higher efficiency. Transformerless inverters are popular in residential solar applications due to their reduced size and improved performance.

2.2.2 Rectifier and Inverter Circuitry



These components work together to convert DC power into AC power. The rectifier initially takes in the DC power and then, with the help of electronic switches like transistors, inverts the current to create the AC waveform. This process is at the heart of DC-to-AC conversion, allowing the system to produce grid-compatible electricity.

The inverter circuitry is also responsible for shaping the waveform, ensuring it meets the sine-wave AC requirements needed for compatibility with grid power and AC appliances.

2.2.3 Control Circuits



The control circuit oversees the operation of the inverter, managing the MPPT (Maximum Power Point Tracking) function, monitoring the power flow, and optimizing efficiency.

The control circuit also provides system protection by monitoring conditions such as voltage, current, and temperature. It can automatically shut down or adjust the system in case of issues, ensuring safe operation and protecting the inverter and connected equipment from damage.
These components work in unison to convert DC power, adjust it to optimal performance, and ensure the smooth, efficient output of AC electricity.

2.3 Difference Between DC and AC Electricity



Understanding the difference between DC (Direct Current) and AC (Alternating Current) is essential in appreciating the role of solar inverters in solar power systems.

Everything You Need to Know About Solar Inverters AC DC

DC Electricity

Direct current is generated by solar panels, where electricity flows in one continuous direction. In DC circuits, the current is steady, but it’s not suitable for long-distance transmission or for powering most appliances directly, as household electrical systems and grids operate on AC power.

AC Electricity

Alternating current is the standard form of electricity used in homes, businesses, and the utility grid. In AC circuits, the flow of electricity reverses direction periodically, creating a sinusoidal wave pattern. This reversal allows AC power to travel efficiently over long distances and power typical household devices.

Solar panels produce DC electricity as they capture energy from sunlight, but this DC power must be converted into AC by an inverter to become compatible with standard electrical systems. By converting DC into AC, the inverter allows solar energy to power home appliances, charge batteries, or feed back into the grid for potential credits or savings on energy bills.

3. Types of inverters based on physical design and connection

Everything You Need to Know About Solar Inverters string inverter

3.1 String Inverters



String inverters are among the most commonly used inverters for solar installations, especially in residential and small commercial systems. In a string inverter system, multiple solar panels are connected in a series, creating a “string” of panels. The combined DC electricity generated from the entire string is sent to a single, centralized inverter, which then converts the power to AC. This straightforward setup makes string inverters both cost-effective and relatively easy to install and maintain.

One of the primary benefits of string inverters is their affordability. Since they require only one inverter unit for the entire system, they reduce both the initial investment and maintenance costs. This makes them an attractive choice for homeowners and small businesses with simpler system requirements. However, string inverters have some limitations, particularly regarding shading. If even one panel in the string experiences shading or a drop in performance, the output of the entire string is affected, which can lead to reduced system efficiency.

String inverters are ideal for installations where panels are placed on a single, uniform plane with minimal shading. Their straightforward design and cost advantages make them a practical option for many residential setups and small commercial applications. However, if your installation site has multiple roof orientations or partial shading, other inverter types may offer better energy optimization.

Everything You Need to Know About Solar Inverters micro inverters

3.2 Microinverters



Microinverters operate differently from string inverters by converting DC to AC power at the individual panel level, which allows each solar panel to work independently of the others. With a microinverter installed on each panel, the output of each panel is maximized regardless of how others are performing, which makes this setup especially beneficial in locations where shading, dirt, or panel orientation may vary. Since each microinverter handles power conversion directly at the panel, shading on one panel won’t impact the performance of the others, enhancing the total system output.

For installations with complex roof layouts, microinverters offer unparalleled flexibility. They are commonly chosen for residential setups with panels on multiple roof faces or for areas with varying shading patterns throughout the day. Additionally, microinverters provide panel-level monitoring, allowing users to track the performance of each panel and quickly identify any issues that might arise. This feature can be valuable for troubleshooting and maintaining long-term system efficiency.

While microinverters offer numerous advantages in energy optimization and monitoring, they do come with a higher initial cost than string inverters. However, the potential energy gains from better performance can offset these costs over time, especially in challenging environments. For users seeking high performance and flexibility, microinverters are a strong choice for both residential and light commercial systems.

Everything You Need to Know About Solar Inverters central inverter

3.3 Central Inverters



Central inverters are designed for large-scale solar installations, including industrial and utility-grade projects. In these setups, solar panels are organized into large groups, each connected to a single high-capacity central inverter. This setup enables efficient power conversion for massive arrays of panels, which makes central inverters highly suitable for projects where large contiguous spaces are available, such as solar farms and large commercial buildings.

One of the biggest advantages of central inverters is their capacity to handle high power loads, making them more efficient and cost-effective for substantial installations. By concentrating power conversion into one location, central inverters can reduce the overall equipment and installation costs when compared to a setup requiring multiple smaller inverters. However, central inverters require considerable space and may need specialized housing to protect them from environmental factors, which is less practical in residential or small-scale commercial projects.

While central inverters offer significant benefits for large installations, they have a single point of failure, meaning any issues with the inverter can halt the entire system’s output. Maintenance can also be more complex and may require specialized technicians. For large projects with ample space and minimal shading, central inverters provide a robust and efficient solution for maximizing energy output.

In practice, some people also call central inverters as string inverters because they both manage power from multiple solar panels. Actually, string inverters and central inverters are not quite the same.

Here we make a breakdown of the differences and why they’re sometimes associated with each other.

Everything You Need to Know About Solar Inverters string inverters and central inverters

3.4 Different between string inverters and central inverters



Both string and central inverters work by aggregating power from multiple solar panels, which is why they’re sometimes lumped together. However, string inverters are smaller and typically distributed across smaller installations, while central inverters are large units designed for massive installations with high power needs.

Everything You Need to Know About Solar Inverter difference between string and central inverter

  • String Inverters

Design and Usage: String inverters connect multiple solar panels in series (called a “string”), and each string feeds into a single inverter. They are most common in residential and small to medium commercial solar installations.

Why They’re Called String Inverters: They get their name from the “string” arrangement, where several panels are connected in a chain, and the combined power flows through the inverter.

System Size and Efficiency: Generally, string inverters work well with systems where the panels are all in a similar orientation and don’t experience shading issues. If one panel’s output drops (due to shading or a malfunction), it can affect the performance of the whole string.

Typical Application: Residential, small to medium commercial installations, where having multiple small inverters or panel-level optimization (like in microinverters) isn’t needed.

  • Central Inverters

Design and Usage: Central inverters work similarly to string inverters in that they aggregate power from multiple strings of panels, but they handle much larger groups. These are used in large-scale solar installations, like utility-scale solar farms.

Why They’re Called Central Inverters: Unlike string inverters, which are distributed throughout a property, central inverters collect power from many strings in one large, centralized unit. These units are bigger, require dedicated housing, and manage a much higher power load.

System Size and Efficiency: Central inverters are designed to handle high-voltage inputs and are optimized for large solar fields with hundreds or thousands of panels, providing centralized, efficient power conversion.

Typical Application: Large-scale solar farms, utility-grade installations, and large commercial projects where high capacity and centralized control are essential.

Everything You Need to Know About Solar Inverters hybrid inverters

3.5 Hybrid Inverters



Hybrid inverters, also known as battery-based inverters, combine the standard functions of a solar inverter with the ability to manage energy storage. They are designed to integrate seamlessly with battery systems, storing excess energy generated by the solar panels for later use. This capability provides users with added resilience, particularly during power outages or at times when grid power is costly or unavailable. Hybrid inverters are especially popular among homeowners looking to reduce reliance on the grid and maximize energy self-sufficiency.

In addition to managing battery storage, hybrid inverters allow users to monitor energy use closely, often via smart apps or online platforms, enabling better control over how and when stored energy is used. This feature can be valuable for optimizing energy consumption, reducing costs, and enhancing energy independence. Hybrid inverters are particularly useful in regions where grid outages are frequent or where utilities offer time-of-use rates, as they allow users to draw from battery storage during peak hours when electricity costs are higher.

The versatility of hybrid inverters makes them suitable for both residential and commercial applications, though they tend to be more expensive than traditional inverters. However, the potential long-term savings and enhanced energy resilience can justify the initial investment, particularly for those prioritizing energy storage capabilities.

Everything You Need to Know About Solar Inverters power Optimizers

3.6 Power Optimizers



Power optimizers are module-level devices often paired with string inverters to enhance system performance. Installed on each panel, power optimizers regulate the voltage and current of each module individually, maximizing its energy output even in cases of partial shading, soiling, or mismatched panel orientations. While power optimizers don’t convert DC to AC on their own (unlike microinverters), they ensure that each panel operates at peak efficiency before sending the optimized DC to a centralized string inverter.

This setup provides a cost-effective alternative to microinverters, offering many of the same shading benefits without requiring AC conversion at every panel. Power optimizers also allow for panel-level monitoring, which makes it easier to identify and address performance issues on specific panels. Additionally, by maintaining optimal DC levels, they can improve overall system efficiency and increase energy yield, making them a popular choice for installations where shading or non-uniform panel orientations are present.

Power optimizers are particularly well-suited for residential and commercial installations that use string inverters but benefit from enhanced energy optimization. This combination allows for high system efficiency at a relatively lower cost than a full microinverter system, providing a flexible and effective solution for complex installations.

3.7 Comparison of Different Solar Inverter Types



Everything You Need to Know About Solar Inverters Comparison of Different Solar Inverter Types

4. Inverters based on system application and grid connection



What Is The Difference Between Off-Grid And On-Grid Solar Power

4.1 On-Grid Inverters



On-grid inverters, also known as grid-tied inverters, are designed to work in direct connection with the electrical grid. These inverters convert the DC power generated by solar panels into AC power that can either be used immediately by the home or business or exported to the grid. Any surplus power generated is sent to the grid, and users are often compensated for this excess energy through feed-in tariffs or net metering policies. Conversely, when the solar system isn’t generating enough power (like at night or on cloudy days), the system seamlessly draws electricity from the grid.

One of the key advantages of on-grid inverters is cost-effectiveness. Since they don’t require batteries, initial setup and maintenance costs are lower than off-grid or hybrid systems. Additionally, on-grid inverters provide flexibility since users have access to both their solar energy and the grid, ensuring continuous access to power. However, on-grid systems rely on the grid’s availability, meaning they don’t provide power during a grid outage unless equipped with additional backup systems.

On-grid inverters are ideal for residential and commercial properties in areas with reliable grid infrastructure. They suit users who are primarily focused on reducing their electricity bills by offsetting grid power usage with solar generation, rather than on achieving full energy independence.

4.2 Off-Grid Inverters



Off-grid inverters, also known as standalone inverters, are designed for fully independent solar power systems that are not connected to the electrical grid. These inverters require a battery storage system to store excess solar energy for use when the sun isn’t shining, such as during the night or on cloudy days. Since off-grid systems operate independently of the grid, they are often used in remote locations where grid access is unavailable or unreliable.

Off-grid inverters are typically larger and more complex than on-grid inverters, as they must manage both the flow of energy to the batteries and the conversion from DC to AC. They often incorporate charge controllers to optimize battery charging and prevent overcharging, extending battery life. While off-grid systems offer complete energy independence, they are generally more costly to install and maintain due to the need for batteries and other specialized equipment. The sizing of the battery bank is also crucial, as it determines how long power will be available during extended periods without sunlight.

These inverters are well-suited for properties in rural or isolated areas and for users seeking complete autonomy from the grid. They are popular among homeowners who prioritize energy independence and wish to avoid monthly utility costs, although they require careful planning and a larger initial investment.

Everything You Need to Know About Solar Inverters Hybrid Inverters combine off grid and on grid

4.3 Hybrid Inverters



Since we have already mentioned in the previous post section 3.5, we introduce some other details based in this classification.

Hybrid inverters, sometimes referred to as multi-mode inverters, combine the functionalities of both on-grid and off-grid inverters. These versatile inverters can work with the grid, battery storage, and solar panels, offering a balanced approach that provides energy resilience and optimization. In a hybrid system, the inverter manages the flow of energy between the solar panels, battery storage, and the grid, ensuring that solar energy is used first, followed by battery power if available, and finally grid power as a last resort.

One of the key benefits of hybrid inverters is their flexibility. During the day, excess solar energy can be stored in batteries rather than sent to the grid. This stored energy can then be used during peak hours or in the evening, reducing dependence on the grid and minimizing energy costs. In the event of a grid outage, hybrid inverters with battery backup can supply power to essential appliances, providing peace of mind and added resilience.

Hybrid inverters are particularly advantageous in regions with frequent power outages or where utility companies offer variable electricity rates. They are suitable for residential and commercial users who want to reduce grid dependency while maintaining a reliable backup power source. Although hybrid inverters typically have higher initial costs due to battery integration, they offer long-term savings and flexibility that can offset these costs over time.

4.4 Relationship between two classification types of inverters



The On-Grid, Off-Grid, and Hybrid systems represent overall operational categories, while String Inverters, Micro inverters, Central Inverters, and Power Optimizers are specific technologies that can be implemented within these categories to meet the energy needs of residential, commercial, or industrial setups. Each inverter type and its associated technologies can be adapted for different solar energy systems depending on the location, desired level of independence, and overall system complexity.

Here we provide the containment relationship between on-grid, off-grid, and hybrid inverters with the different types of inverters string inverters, micro inverters, central inverters, and power optimizers to make you better understand.

Relationship between two classification types of inverters

After exploring the different types of inverters, we now provide some guidance on how to choose the right one.

5. Choosing the Right Solar Inverter

5.1 Key Factors for Selection



Choosing the right solar inverter depends on several key factors that directly impact the performance, cost, and efficiency of your solar power system. These factors include power needs, shading, budget, and solar panel layout.

Relationship between two classification types of inverters

  • Power Needs

The most important factor to consider when selecting an inverter is the amount of power your system will need to generate. Your solar inverter should be capable of handling the expected power output from your solar array. To calculate your power needs, you should assess your energy consumption, the size of your solar array, and the peak energy demand.

– For residential systems, inverters are generally sized to handle the peak power output of the panels.

– For larger commercial or industrial systems, central inverters or hybrid inverters may be necessary to handle greater energy demands.

Everything You Need to Know About Solar Inverters Solar-Panel-Shading

  • Shading

Shading can significantly reduce the performance of a solar system. If your installation site is prone to shading from trees, buildings, or other obstructions, it’s important to choose an inverter that minimizes losses due to shading.

– Microinverters are ideal in shaded areas because they operate at the panel level, meaning if one panel is shaded, it does not affect the output of the others.

– String inverters, while cost-effective, are less efficient when parts of the array are shaded because all panels in the string are affected by the lowest-performing panel.

Everything You Need to Know About Solar Inverters Budget

  • Budget

Your budget plays a crucial role in determining which type of inverter is the best fit. Generally, string inverters are the most affordable option, making them suitable for residential applications where shading is not a significant concern. However, micro inverters tend to be more expensive but offer better efficiency in areas with partial shading or complex panel layouts.

– Central inverters are typically used in large-scale commercial systems and are cost-effective for handling large amounts of power but can be costly for smaller systems.

Everything You Need to Know About Solar Inverters solar panel layout

  • Solar Panel Layout

The layout of your solar panels will influence the type of inverter you choose. If your panels are arranged in a simple, unshaded grid, a string inverter may be sufficient. However, for irregular layouts or systems with varying tilt angles or shading, micro inverters or power optimizers might be the better choice. These technologies allow you to maximize the efficiency of each panel individually.

5.2 Importance of System Compatibility



When selecting a solar inverter, it’s essential to ensure compatibility between the inverter, solar panels, and other components, such as solar conduits, batteries, and charge controllers. Incompatibility between these components can lead to inefficiency, safety issues, or even system failure.

Everything You Need to Know About Solar Inverters Importance of System Compatibility

  • Inverter and Solar Panel Compatibility

The inverter should match the voltage and current ratings of the solar panels to ensure optimal energy conversion. String inverters typically work best when the voltage and current of the solar panels are within a certain range. If your panels have high output voltage, ensure the inverter can handle this without overheating or underperforming. On the other hand, microinverters are more flexible in terms of compatibility with different types of panels, as each microinverter operates independently on a per-panel basis.

  • Inverter and Solar Conduit Compatibility

Solar conduits are used to protect and route wiring between the panels, inverter, and electrical panel. Ensuring that the conduit system is designed to accommodate the wiring from the inverter is critical to avoid overheating or damage. Rigid PVC conduit is often used for on-grid systems due to its durability and ease of installation, while flexible PVC conduit may be more suitable for areas that require more flexibility.

  • Inverter and Battery Compatibility

For hybrid systems or off-grid systems, compatibility between the inverter and batteries is essential. Hybrid inverters must be designed to manage the flow of electricity between the solar panels, batteries, and the grid. Some inverters are compatible with certain types of solar batteries, and choosing an inverter that supports the specific battery technology you are using is crucial for safe and efficient energy storage.

Everything You Need to Know About Solar Inverters Importance of System Compatibility

5.3 Sizing a Solar Inverter



Properly sizing your solar inverter ensures that it operates efficiently, preventing under performance or excessive wear. Inverter sizing is determined by two main factors: the solar power capacity and the peak power demands of your system.

  • Solar Power Capacity

The total power output of your solar panels, measured in kilowatts (kW), will determine the size of the inverter required. To ensure the inverter can handle the power generated by the solar array, you generally want to size the inverter so that it is 20-30% smaller than the total capacity of the solar array. For example, if your solar array generates 10 kW of power, you would typically choose an inverter with a capacity between 7-8 kW.

This slightly undersized inverter helps to optimize performance during periods of low sunlight or cloud cover while ensuring that the inverter doesn’t overheat or become stressed by excessive power generation.

  • Peak Power Demands

In addition to matching the total power output, the inverter should be able to handle peak power demands. This refers to the maximum amount of power the system might generate under optimal conditions (e.g., during peak sunlight hours). If your system is expected to produce high peak outputs, especially in commercial or industrial systems, it is important to ensure that the inverter is rated to handle these peak demands.

For example, string inverters are generally rated for peak demand, but you might need a central inverter in large systems to ensure that the inverter can handle the high surge of power when the system is producing at maximum capacity.

Everything You Need to Know About Solar Inverters string inverters installation process

6. Solar Inverter Installation Process



6.1 Pre-installation Preparations



Before you begin the installation of your solar inverter, it’s essential to make sure everything is prepared for a smooth and efficient installation. The most important aspects of pre-installation preparations include sizing, compatibility checks, and selecting the right solar conduit.

  • Sizing the Inverter

Properly sizing your solar inverter is crucial to ensure optimal system performance. The inverter should be sized to handle the maximum output of your solar panels while leaving room for some flexibility. For residential systems, the inverter is usually sized to be 20-30% smaller than the total output capacity of the solar array to avoid overloading. It’s essential to consult with a professional or refer to the manufacturer’s guidelines to select the right inverter size based on the total wattage of your solar panel system.

  • Compatibility Checks

Compatibility between your solar inverter and other system components, such as solar panels, batteries, and solar conduits, is critical. Before installation, confirm that the inverter is compatible with your solar panels in terms of voltage and current output. For hybrid inverters, check their compatibility with the battery storage system as well. Additionally, ensure that the inverter’s mounting location is easily accessible and complies with local safety codes.

  • Choosing Quality Solar Conduits

Solar conduits are essential for safely routing the electrical wiring between the inverter, solar panels, and other system components. Choosing high-quality, weather-resistant PVC conduits ensures the wiring stays protected from environmental factors such as UV exposure, moisture, and physical damage. For underground installations, it’s important to select the right type of conduit, such as schedule 40 or schedule 80 PVC conduit, which offers enhanced durability and strength.

Everything You Need to Know About Solar Inverters string inverters installation pre

6.2 Step-by-Step Solar Inverter Installation



Once pre-installation preparations are in place, the actual installation of the solar inverter involves a series of methodical steps. These steps ensure the inverter is securely mounted, wired correctly, and connected to the solar panels and battery storage.

6.2.1 Mounting the Inverter



The first step in the installation process is mounting the inverter. This is a critical step because the inverter must be installed in a location that provides proper ventilation and protection while still allowing for easy access for maintenance. The inverter should be mounted on a wall or a rack that is both sturdy and stable. Ensure that the installation site is dry, well-ventilated, and away from direct sunlight or extreme weather conditions to prevent overheating.

Use the manufacturer’s mounting brackets or frames to securely attach the inverter to the selected surface. Ensure the inverter is positioned at a height that is comfortable for any future maintenance or troubleshooting. Be sure to follow the manufacturer’s guidelines regarding clearance distances around the inverter for ventilation, as inadequate airflow can cause overheating.

6.2.2 Connecting the Solar Panels and Batteries



Once the inverter is mounted, it’s time to connect the solar panels and battery storage (if applicable) to the inverter. For string inverters, the positive and negative wires from each string of solar panels are connected to the corresponding terminals on the inverter. Make sure the connections are properly tightened to prevent any loose connections, which could lead to inefficiencies or safety hazards.

For microinverters, each inverter is attached to a specific solar panel, so the connection process is simpler. Ensure each panel is connected to its respective inverter, following the recommended voltage and current limits specified by the manufacturer.

If your system includes battery storage, hybrid inverters should be connected to the battery as well. This connection allows for efficient energy storage and discharge. Ensure that the battery connections are secure and that the inverter’s charging capabilities match the battery’s specifications.

Everything You Need to Know About Solar Inverters conduit installation

6.2.3 Wiring Through Solar Conduits



The next step is to route the wiring between the solar panels, inverter, and any other system components, such as the electrical meter or distribution panel, using solar conduits. Properly installing solar conduit is crucial for protecting the electrical wiring from physical damage, environmental exposure, and electrical faults.

6.3 Step-by-Step Process for Conduit Installation



Planning the Conduit Path: Plan the route for your conduits to ensure a direct and safe path between the inverter and the solar panels. Avoid sharp bends or overly long runs that could result in voltage drop or potential damage to the wiring.

Cutting and Fitting the Conduit: Measure and cut the conduit to the required lengths, ensuring that each section fits snugly without causing any strain on the wiring. Use PVC pipe cutters or saws to make clean cuts, and always deburr the edges to prevent wire damage.

Running the Wiring: After fitting the conduit, run the wiring through the conduit, ensuring that it is neatly and securely installed. Make sure to leave some slack at both ends to accommodate any movement or future maintenance.

Securing the Conduit: Once the conduit and wiring are in place, secure the conduit along the route using appropriate brackets or fasteners. Ensure that the conduit is adequately supported to prevent it from sagging or being exposed to external pressure.

Sealing the Conduit: Finally, seal any joints or openings with waterproof adhesive or silicone to prevent moisture from entering the conduit. This will help protect the wiring and ensure the system’s longevity.

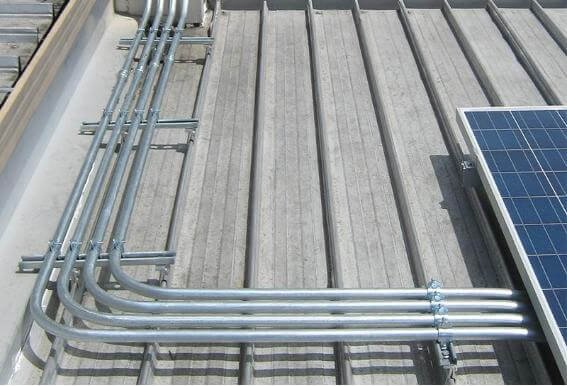

7. The Role of Solar Conduits in Solar Inverter Systems

Solar conduits are an essential component in a solar power system, providing crucial protection for the wiring that connects the solar panels to the inverter and other electrical components. These conduits help ensure the durability, safety, and efficiency of the system by safeguarding the wiring from physical damage, environmental hazards, and electrical issues. In this section, we will explore the purpose of solar conduits and the different types used in solar installations.

7.1 Purpose of Solar Conduits in Solar Systems



  • Wiring Protection

One of the primary purposes of solar conduits is to protect the electrical wiring that runs between the solar panels, inverter, and other system components. Solar panels generate direct current (DC) electricity, which is carried through wiring that must be protected from external elements and physical damage. Conduits act as a shield, preventing cuts, abrasions, and other damages that could expose wires or lead to electrical shorts.

  • Safety

Solar conduits are designed to enhance the overall safety of a solar power system. By protecting wires from physical damage, they reduce the risk of electrical fires caused by exposed wiring or faulty connections. Additionally, conduits can also help prevent electrical shocks by containing the wiring within a durable, insulated shell. When properly installed, solar conduits ensure that electrical currents are safely contained and do not come into contact with water or other conductive materials that could lead to safety hazards.

  • UV Resistance

Solar conduits, particularly those made from PVC, are designed to withstand exposure to ultraviolet (UV) radiation from the sun. UV rays can degrade and weaken materials over time, leading to cracking, warping, or premature failure. Since solar power systems are typically installed outdoors, the conduits must be UV resistant to ensure that they retain their integrity and continue to protect the wiring throughout the life of the system. High-quality UV-resistant conduits help ensure the longevity and reliability of the entire solar system.

7.2 Types of Solar Conduits



There are several types of conduits used in solar power installations, each offering distinct advantages depending on the needs of the system. These include UPVC, metal, flexible, and fiberglass conduits, each with its own set of features, benefits, and ideal applications for solar installations.

Everything You Need to Know About Solar Inverters UPVC Solar Conduit

UPVC (Unplasticized Polyvinyl Chloride) conduits are a popular choice for solar installations due to their affordability, durability, and ease of installation. These conduits are resistant to corrosion, lightweight, and provide excellent UV protection, making them ideal for outdoor solar systems. They are also non-conductive, which adds an extra layer of safety by preventing electrical shocks.

Everything You Need to Know About Solar Inverter metal conduit

  • Metal Conduits

Metal conduits, such as rigid metal conduit (RMC) and intermediate metal conduit (IMC), are used in situations where extra durability and protection are needed. These conduits offer superior protection against physical damage, making them suitable for areas that are prone to impacts, crushing, or abrasion. Metal conduits are often used in industrial or high-risk environments where the wiring needs to be well-protected.

However, metal conduits are heavier and more expensive than PVC, and their installation can be more complicated, requiring specialized tools and fittings. Additionally, they may need to be coated or galvanized to protect against rust and corrosion if used outdoors or in wet environments.

  • Fiberglass conduits

Fiberglass conduits are increasingly being used in solar installations due to their superior durability and performance in harsh conditions. These conduits are resistant to extreme temperatures, UV radiation, corrosion, and chemicals, making them ideal for solar installations in challenging environments, such as coastal areas with high saltwater exposure or areas with high humidity.

Everything You Need to Know About Solar Inverters flexible conduit

In recent years, flexible conduits have become a popular choice in solar energy systems due to their flexibility. Flexible conduits offer a different set of advantages compared to rigid conduits. Made from either flexible metal or plastic materials, these conduits are ideal for areas where the wiring needs to bend around obstacles or follow complex routes. They are especially useful for short runs of wiring or when the installation requires flexibility to maneuver around tight spaces or structural elements.

8. Conclusion



In this comprehensive guide, we have explored the critical role of solar inverters and conduits in solar power systems. Choosing the right inverter involves considering key factors such as system compatibility, power requirements, and the specific conditions of your solar installation. Additionally, solar conduits are indispensable for ensuring the protection, safety, and longevity of your solar system.

Everything You Need to Know About Solar Inverters Ctube Solar Conduit and Fittings

Ctube is a professional manufacturer of high-quality PVC conduits and fittings, specializing in providing reliable and durable solutions for electrical and solar power systems. Ctube offers both solar rigid conduit and solar flexible conduit, along with matching accessories, all of which comply with the AS/NZS 2053 standard. These products are available in various sizes and colors and are designed to withstand temperatures ranging from -15℃ to 105℃. They provide compression resistance of 750N/5cm for medium-duty applications and 1250N/5cm for heavy-duty applications. Customization options are also available to meet specific project requirements.

Thanks for reading and good luck with your project!

Everything You Need to Know About Solar Inverters FAQs

FAQs



1. Are there solar inverters specifically designed for extreme weather conditions?



Yes, many solar inverters are designed to withstand various environmental conditions, including extreme heat, cold, and humidity. Some models are rated for outdoor use with IP (Ingress Protection) ratings, indicating their resistance to dust and water. When selecting an inverter, consider models that are specifically rated for your local climate conditions.

2. How do I know if my solar inverter is working properly?



Most solar inverters come with a display or indicator lights to show their status. If the inverter is working correctly, the display will usually show a “green” or “normal” status. Additionally, many modern inverters connect to monitoring apps that allow you to track performance and receive alerts if there’s a problem.

3. Can I DIY The Installation Of My Solar Inverter?



In some countries, DIY installation of a solar inverter is illegal and strictly prohibited due to safety and regulatory concerns. Even where DIY is allowed, it’s often recommended to use a certified installer to ensure compliance with local codes, maintain warranty coverage, and ensure safe operation.



Picture of Ctube

Ctube

Global Leading Solar Conduit Solutions Supplier - Empowering Sustainable Energy Worldwide

Email Us

More Posts

About Ctube

As a professional and leading solar PVC conduit and fittings manufacturer in China, Ctube specializes in the development and production for innovative PVC conduit and fitting products for the cable management and protection. All products are certified by UL, AS/NZS 2053, CSA, CE, ROHS, IEC, and more. Ctube are committed to delivering high-quality products and services efficiently and promptly to our customers of global markets. Looking for a reliable manufacturer and supplier of solar PVC electrical conduit ? We would be your best partner. Contact us today to discuss your requirements.

Quick Quotation

or email us at ctube@c-tube.net


With More than 10 Years' Experience

Global Leading Solar Conduit Manufacturer and Supplier - Compliant with ISO 9001, ISO 14001, ISO 45001 Certifications

Scroll to Top

Request A Quote

or email us at ctube@c-tube.net
